The Wright Audio
PH - 3 Phono Stage
with PS - 3 Separate Tube Power Supply
The Wright Audio PH – 3 Phono Stage provides the additional amplification and equalization neccessary to accept the output from a turntable equipped with a moving magnet or high – output moving coil cartridge.
The separate tube power supply eliminates all mechanical and electrical interference from an internal power supply. In addition, there are separate Left and Right Channel tube power supplies for increased channel separation resulting in more accurate sonic imaging and dimensional sound. Use of a choke-filtered tube power supply also seems to increase the sound’s apparent purity and resolution.
A manual ‘mute’ switch is included which can prevent transient pulses created when the stylus is placed on or taken off the record.
An hourmeter is provided to keep track of elapsed time on the tubes and provides a rough approximation of stylus time.
The power supply can accommodate a second PH – 3 Phono Stage for another or a different player setup.
All parts in the Preamplifier and Power Supply are extremely conservatively operated at a small fraction of their rating for very long life.
This uniquely musical component presents an even top to bottom frequency balance, great clarity and an excellent soundstage which will have you rediscovering your vinyl collection!
FEATURES AND SPECIFICATIONS
PH - 3 Phono Stage
- For use with moving-magnet or high-output moving-coil cartridges.
- Separate channel lights indicate high-voltage status.
- Unit does not invert phase. Uses (3) ECC83, E83CC or 12AX7 matched section, dual triode tubes. No other tube numbers accommodated.
- Mute switch
- Military-specified parts chosen based on listening tests.
- All point-to-point wiring. No circuit boards. This makes possible future circuit modifications and upgrades by Wright Audio practical with no obsolescence of the product.
- Length of interconnecting cable between the PH-3 Power Supply and Phono Preamplier is 23 inches.

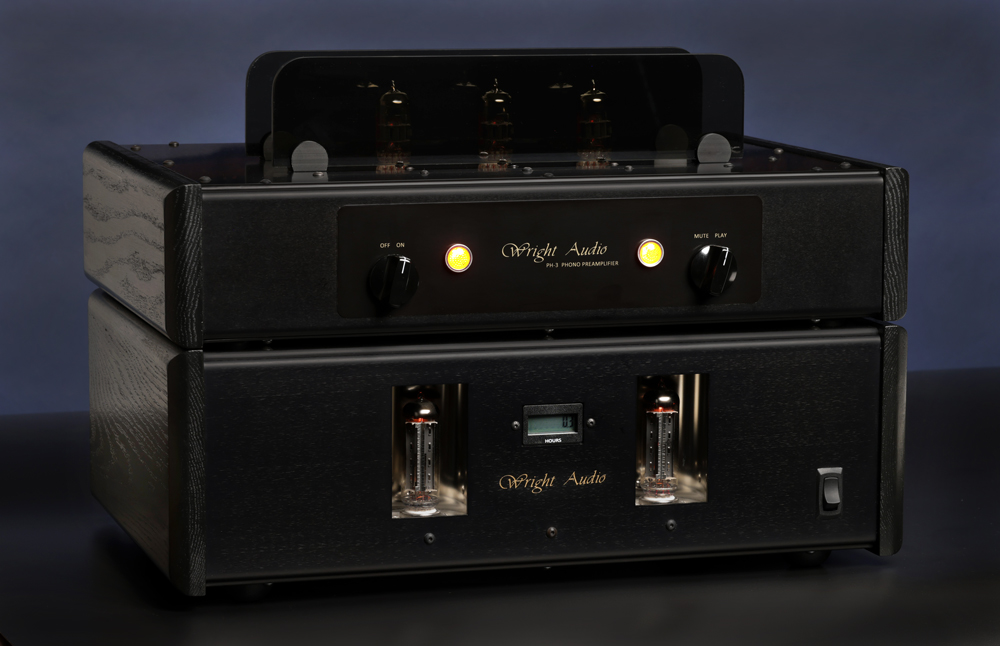

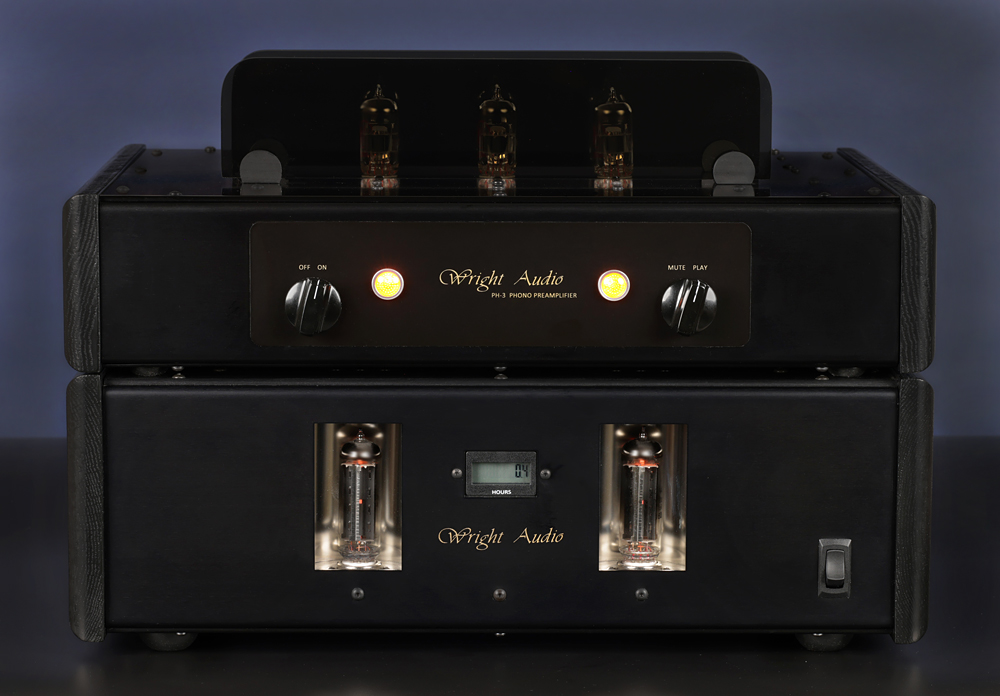

Please note: Lowest noise and proper heat dissipation will be obtained by placing the preamplifier at least 3 inches above the power supply or side-by-side with at least 2 inches above both units for best results. The arrangement shown in the photos is only for product illustration and not suitable for final installation.
- Black anodized aluminum with gold lettering and solid oak black side panels.
- Preamplifier unit only size: 18″W x 13″D x 6″H
- Weight: 8 lbs.
PS - 3 Power Supply
- Can accommodate two PH – 3 Preamplifiers.
- Tube Complement: Two matched EZ81 / 6CA4. No other tube numbers accommodated.
- Hourmeter keeps track of all tube life.
- Detachable IEC Power Cable
- External fuse
- Dimensions: 18″W x 13″D x 6″H
- Weight: 18 lbs.
- Power Requirement: 120 Volts AC
- THREE YEAR WARRANTY (Tubes: 3 Months)
- Designed and assembled in the U.S.A. using U.S. and Global components.
Please read the Instruction Manual before purchasing.
PH - 3 Preamplifier and PS - 3 Power Supply - $1795
Additional PH - 3 Preamplifier Unit Only - $1150
Shipping by quotation.
IN STOCK
TO ORDER OR FOR A CONSULTATION
Contact: inform@WrightAudioArts.com
