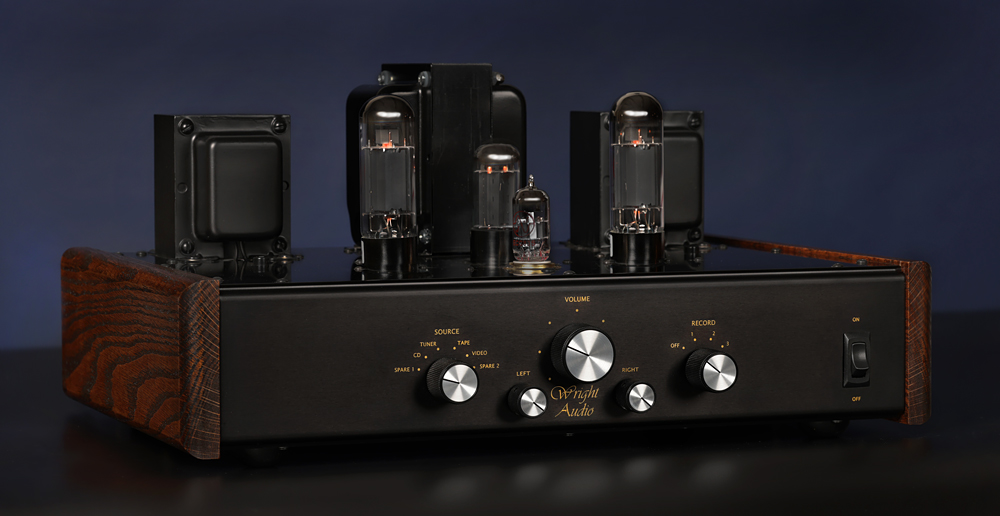

The Wright Audio Royale SE6 Integrated Amplifier is an 'all-in-one', single-ended, triode-connected tube stereo amplifier.  Due to the 'single-ended' circuitry, it has lower power output but is characterized by a more vivid, clear and harmonically-rich sound with greater dimensionality than solid-state, Class D or higher-powered 'push-pull' amplifier types whether using tubes or transistors.

It is perfect for apartment-size listening rooms or where being close to the speakers is a requirement.

It accepts six analog sources of any type except phono.  A separate phono preamplifier stage is required for use with a phono cartridge.  The amplifier is compatible with all modern digital sources as long as an analog output is provided.

This amplifier provides greater clarity and more dynamics than other tube single-ended designs.  This is due to a careful selection of parts, a circuit topology and operating parameters all chosen for sound quality through extensive listening tests.  A custom-made, matched-channel Alps conductive plastic volume control, polypropylene and foil capacitors and output transformers created for wide bandwidth and high resolution have been employed.  The amplifier requires no maintenance or adjustment other than normal tube replacement.

There are no solid-state devices, integrated circuits, transistors or circuit boards in the amplifier.

The music signal directly passes through just two capacitors and two very high gain vacuum tubes to preserve the integrity of the signal source.

The Wright Audio Royale SE6 Integrated Amplifier will suddenly involve you more intimately with the music you love.


FEATURES AND SPECIFICATIONS

• *  Frequency Response: 25 to 30,000 cycles, within 1 db.  7 watts per channel output continuous.

• *  SE6 Tube Complement:  (1) ECC83 / 12AX7, (1) GZ34 / 5AR4, (2) EL34, 6CA7 or KT77 tubes connected in triode mode.   No other tube numbers accommodated.


• *  Controls: Power, Selector (CD, Tuner, Tape, Video, Spare 1, Spare 2), Left and Right Channel Level Presets (eliminates the 'half-set' Balance control), Volume, Record 1, 2, 3 (Fixed-level passive outputs which may be used for recording, a stand-alone headphone amplifier and a 'whole-house' wireless music distribution system with external transmitter such as Bluetooth or  Stereo FM).
• *  Accommodates all analog line-level sources or digital sources with an analog output.   For Phono, a separate phono preamplifier stage is required.
• *  Vacuum tube, choke-filtered power supply provides the highest resolution, most pure sound, low noise and slow warm-up for longer parts life.
• *  4 and 8 ohms speaker output.  16 ohms optional at slight extra charge.

  *  High quality individually-mounted RCA jacks and heavy duty, 30 amp - rated, 5 - way speaker binding posts accept banana plugs.

• *  Externally - mounted fuse.

• *  Detachable IEC power cable.
• *  RoHS compliant parts used where applicable.

• *  Size: 17 1/2" W  x  13 3/4" D  x  9" H

• *  Net weight: 31 lbs
• *  Available in 120, 220 / 240 volt 50 / 60 cycle versions.
