The Wright Audio

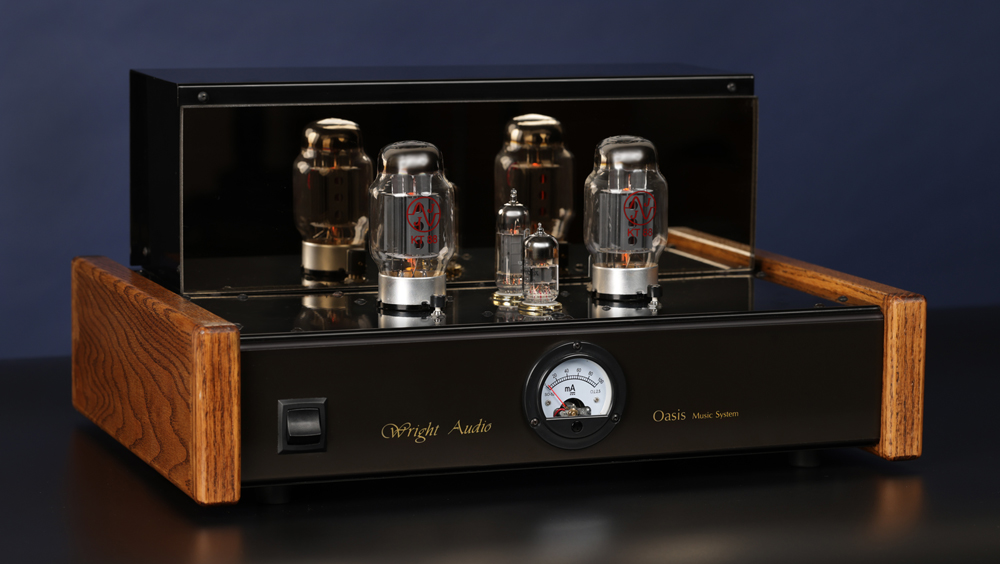

Oasis Monaural Power Amplifier




Carefully designed, the Oasis Monaural Power Amplifier maximizes the potential of vacuum tubes by demonstrating rich musical harmonics, correct attack and decay times, vivid resolution and a spectacular soundstage.

The amplifier can accommodate KT88, 6550, KT77, EL34 and 6CA7 output tubes.

Power output is 50 watts when using KT88 or 6550 output tubes.  Individual tube bias adjustment is easy with pushbuttons and controls next to each tube with direct readout on the front panel milliammeter.  Like all Wright Audio's amplifier products, there are  no circuit boards for ease of repair or future upgrades.

The power transformer is a custom, low-impedance design for maximum power transfer to the output tubes.  There is a separate power supply dedicated to only the input tube, proven to enhance sonic clarity.

For the correct gain, lowest noise and  overall best sound, the Oasis Power Amplifiers are only available with the LT-6P Preamplifier as a perfectly matched set for a complete, no-compromise amplifier system.





Features and Specifications

  • Power Output: 50 Watts, 15 to 25,000 cycles minus 1dB points at less than 2% harmonic distortion into 4 or 8 ohms.

  • Tube Complement: (1) 6922 or 6N1P; (1) 12BH7; (2) KT88.   Also accommodates KT77, EL34 and 6CA7  tube types.
     No other tube numbers accommodated.
  • Input impedance: 100K ohms.

  • Separate power supply for low-level input tube isolates the delicate input signals from the output section.

  • Military-grade parts, selected for listening quality.

  • RoHS compliant parts used where applicable.

  • All point-to-point wiring.  Non-obsolescent construction with no circuit boards for ease of future upgrades.

  • Glossy, black-anodized aluminum heavy-duty chassis, one-eighth thick, epoxy black top surface for lowest mechanical and electrical noise.  Black gloss cover with bronze-tinted mirror backdrop.

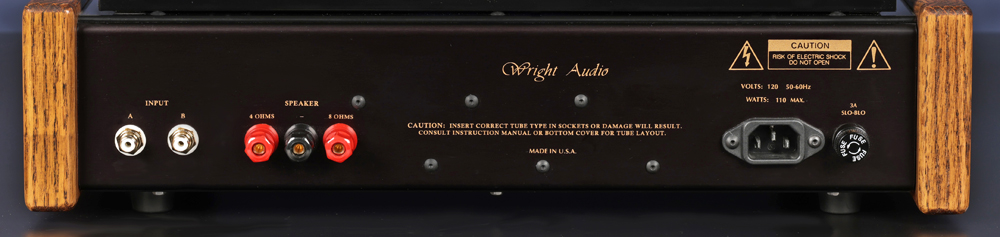

  • Gold-plated, individually mounted RCA jacks.

  • 5-way, gold-plated 30-amp speaker binding posts for 4 and 8 ohm speakers.

  • Detachable, IEC AC power cable.  External protective fuse.

  • Individual output tube biasing controls with meter.

  • Extra heavy-duty, low impedance power transformer.  100% over-rated output transformer.

  • Size:  18"W x 9" H x 13 1/2" D.  The compact design allows for easy placement.

  • Weight:  33 pounds.  Shipping weight: 38 pounds.

  • For 120 Volts, 50 / 60 Cycles.

  • Warranty:  5 YEARS Parts and Labor; 3 Months, Tubes.

  • Designed and assembled in the U.S.A. using U.S. and Global parts.

Specifications subject to change.



Oasis Power Amplifier Instruction Manual Download






SET

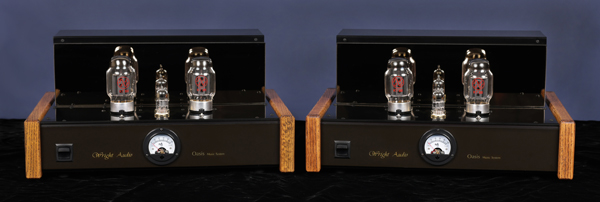

 LT-6P Preamplifier and  Pair, Oasis Monaural Power Amplifiers



PRICE - $5950

Continental U.S. Shipping - $295

Total - $6245

EXPECTED July 18
